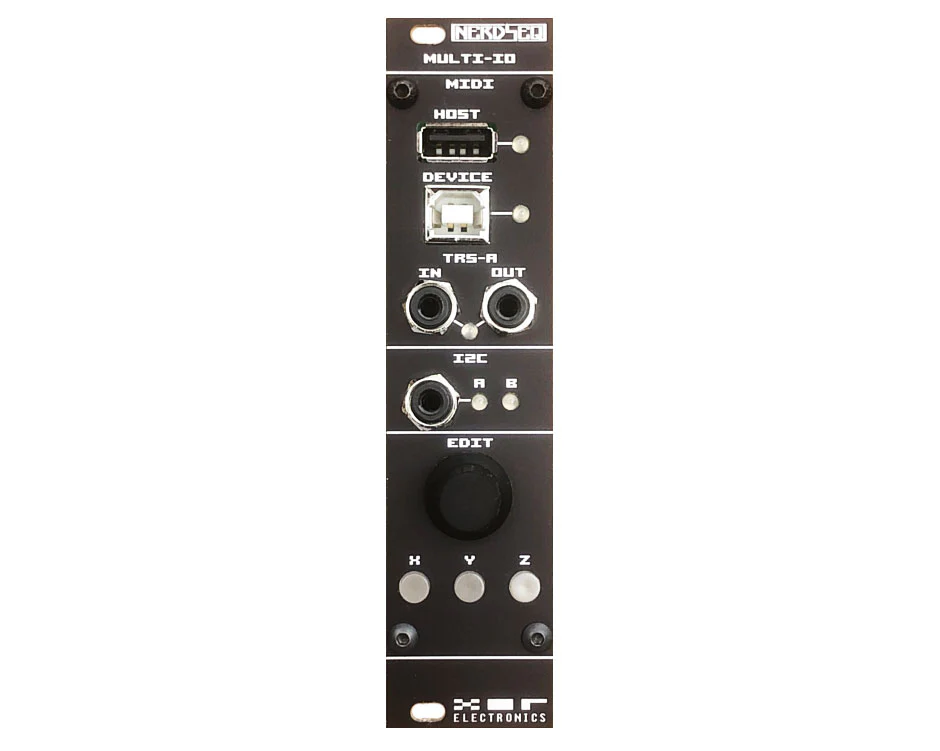

The Multi-IO Expander for the NerdSEQ adds three different MIDI Ports, two I2C Ports and some additional edit possibilities to the NerdSEQ.

IO Ports:

• USB Host > Connect any Midi Class Compliant gear like a Launchpad, Midi Keyboard and more
• USB Device > Connect to your Computer and get a new XOR Midi Device for direct Computer NerdSEQ MIDI communication
• TRS-A Midi > Classic Midi connection using a stereo jack cable (adapters for DIN Midi Connectors included)
• 2 x I2C Ports > Each can be either leader or follower. Connect your I2C capable module (eg 16n, ER301, distingEX, Just Friends and others) and access 100 virtual patch-cables. Both ports are located on the backside of the module but one port is also additionally located on the front (to connect an external 16n faderbox for example).
• Additional Buttons and an encoder Knob -> New edit modes, dial in notes and more!

Manual

Please note: the NerdSEQ is required to use this module.

The Multi-IO includes a power buscable, 12 pin ribbon cable for the midi connection and 2 TRS-A to DIN Midi connectors. Additional Du-Pont Cables for I2C are available for separate purchase.

Product Specs

• Item Number: 30838
• Make: XOR Electronics
• Model: Multi-IO Expander - Black
• Condition: Brand New
• Finish: Black
• Categories: keyboards-and-synths ⇒ eurorack
• Function: Expander
• Made In: Netherlands
• MPN: XOR-MULTIOB
• Modular Grid: Eurorack ⓘ ＋
• Dimensions*: 6 HP 40 mm deep
• Power*: 20 mA +12V 0 mA -12V 0 mA 5V

* User contributed details
