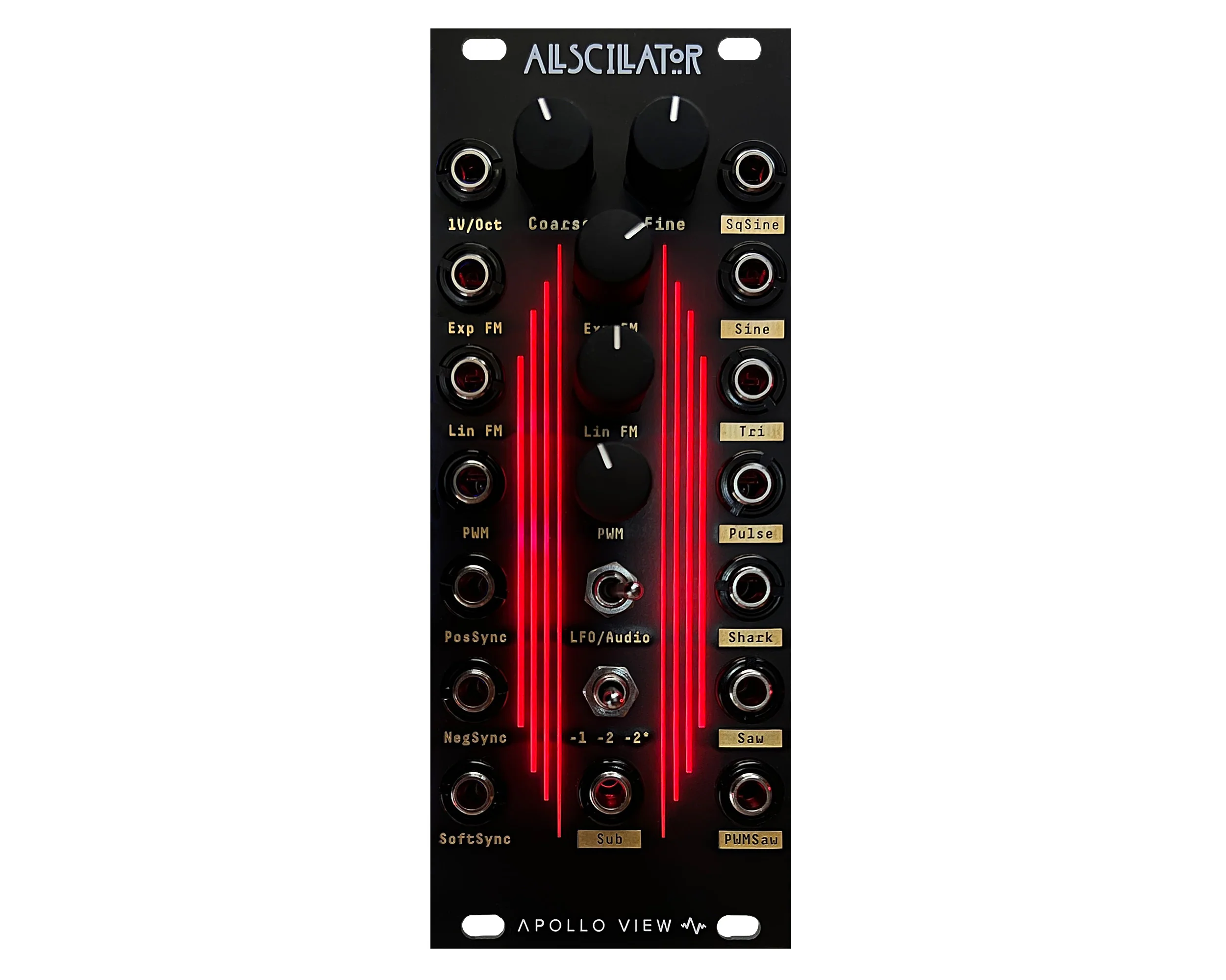

Apollo View Allscillator

All the oscillator waveforms in 10 HP! No ordinary 3340 VCO!

An extremely stable, wide-ranging (0.0011Hz – 20kHz), all analogue triangle core VCO / LFO / Ultra-LFO based on famous 3340 VCO IC, which utilises the full potential of the 3340’s capabilities and adds additional wave-shaped outputs.

Provides eight simultaneously available waveforms:​

• Square Sine
• Sine
• Tri
• Pulse (PWM)
• Sharktooth
• Saw
• PWM Saw
• Sub (-1 Octave, -2 Octave and -2 Octave Pulse) ​ * Sub octave is square/pulse selectable via a switch: -1 Octave, -2 Octave and -2 Octave
• Pulse (25% high, 75% low duty cycle)

​1V/oct control extends over +10 octaves. Further frequency modulation is possible through independent Exponential Frequency Modulation and Linear Frequency Modulation. Each FM input has an attenuator for controlling the range of the modulation.

​Three types of independent oscillator sync are available for locking the pitch to another master oscillator and creating new harmonically rich waveform shapes at the outputs:

• Positive edge Hard Sync
• Negative edge Hard Sync
• Soft sync (from a negative edge) ​ * The oscillator range can be switched between Audio frequency, LFO frequency and Ultra LFO.
• Audio - 23Hz to +20kHz
• LFO - 0.67Hz (1.5 seconds) - 45Hz
• Ultra LFO - 15mins to 12 seconds
• The LFOs can be pushed up into the Audio range by using 1V/oct and FM inputs.

Video: https://youtu.be/gvv8RiWRf6M

Product Specs

• Item Number: 25151
• Make: Apollo View
• Model: Allscillator
• Condition: Brand New
• Finish: Black
• Categories: keyboards-and-synths ⇒ eurorack
• Function: Oscillator
• Made In: United Kingdom
• MPN: APLL03
• Modular Grid: Eurorack ⓘ ＋
• Dimensions: 10 HP 40 mm deep
• Power: 135 mA +12V 120 mA -12V 0 mA 5V
