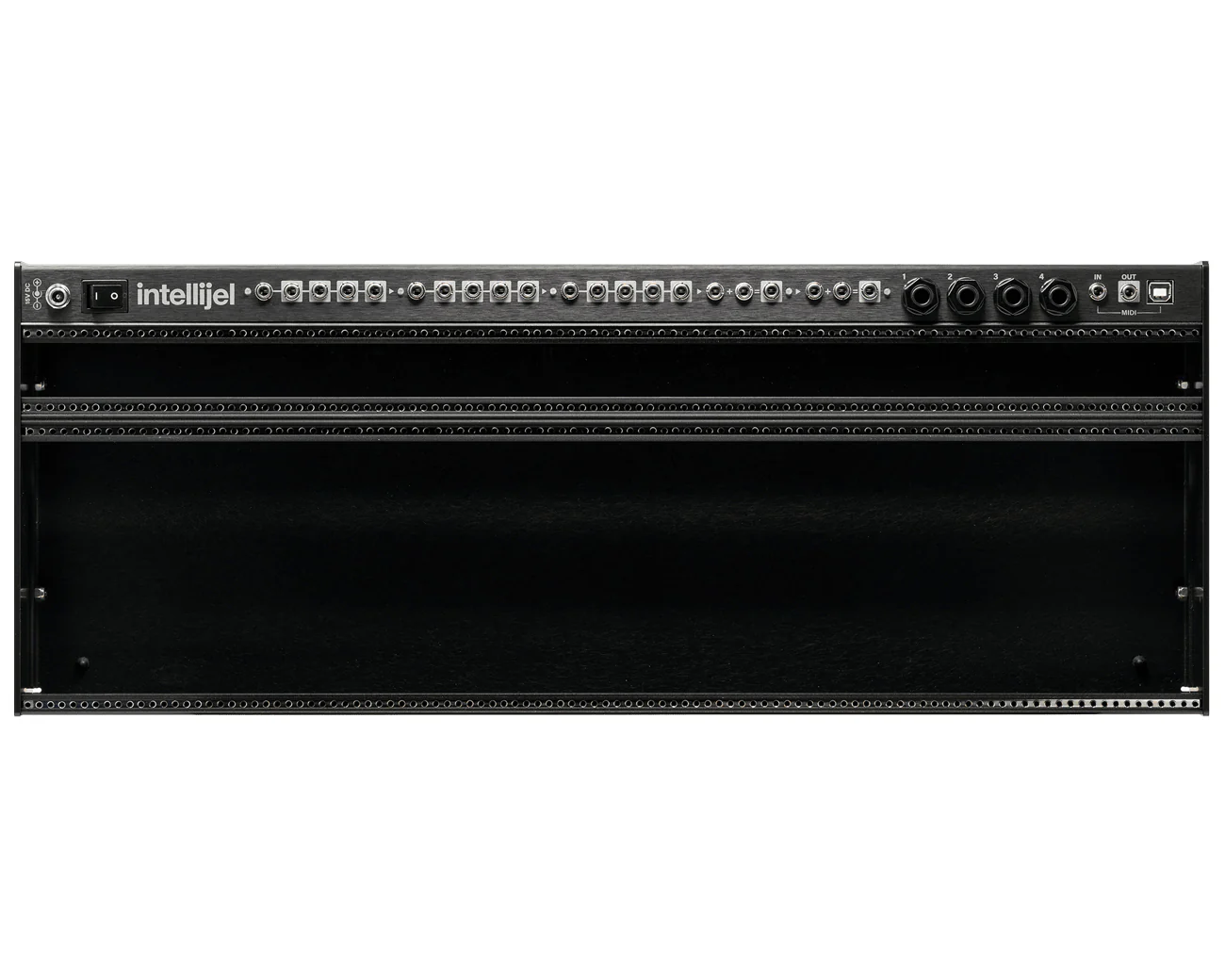

Intellijel Palette 4U 104HP - Stealth

Palette 104 Features:

• One 104 hp row of Eurorack (3U) module space.
• One 104 hp row of Intellijel (1U) module space.
• Built in triple buffered multiple with bi-polar led level indicators.
• Built in dual precision summers with bi-polar led level indicators.
• Expansion jacks for MIDI and balanced audio i/o.
• Threaded M3 strips for mounting modules.
• High spec 60 Watt power supply capable of powering up to 24 modules with +12 V output at 1500 mA, -12 V output at 1500 mA and +5 V output at 500 mA.

Utilities Row Specs:

• Triple 1:4 buffered multiple.
• Dual 2:1 precision summer.
• Four 1/4″  balanced audio (trs) jacks that can be connected to the Stereo Line Out 1U, Stereo Line In 1U, Pedal I/O 1U or Mixup.
• ⅛” (3.5mm) MIDI Input that can be connected to MIDI 1U.
• ⅛” (3.5mm) MIDI Output that can be connected to MIDI 1U.
• USB-B port that connects to the MIDI 1U and other future modules.
• Rocker switch and 2.1mm x 5.5mm barrel plug for power entry.

*Decksaver and custom bag also available.

Product Specs

• Item Number: 16593
• Make: Intellijel
• Model: Palette 4U 104HP - Stealth
• Condition: Brand New
• Finish: Black
• Categories: keyboards-and-synths ⇒ eurorack
• Function: External MIDI Multiple Power Utility
• Made In: Canada
• MPN: CASE-4U-104HP-STEALTH
• Modular Grid: Eurorack ⓘ ＋
• Dimensions: 104 HP
• Power: ? mA +12V ? mA -12V ? mA 5V
